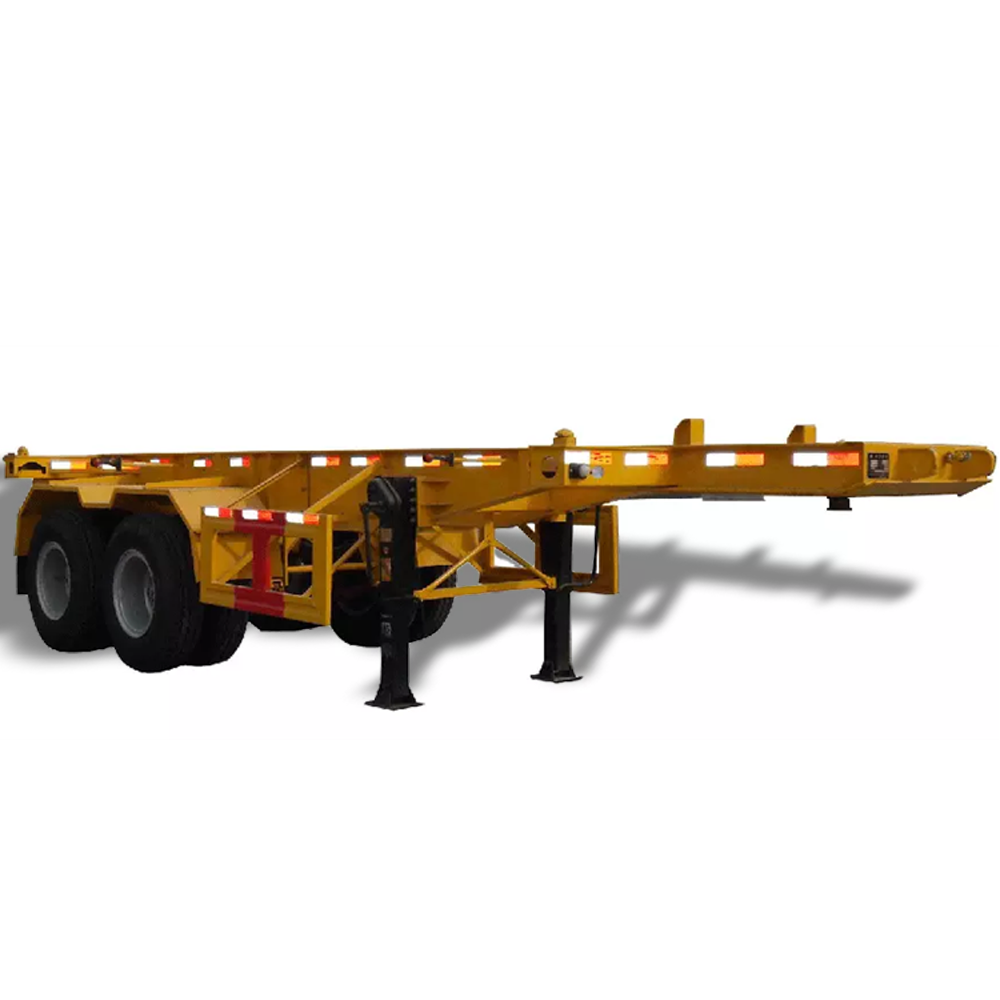

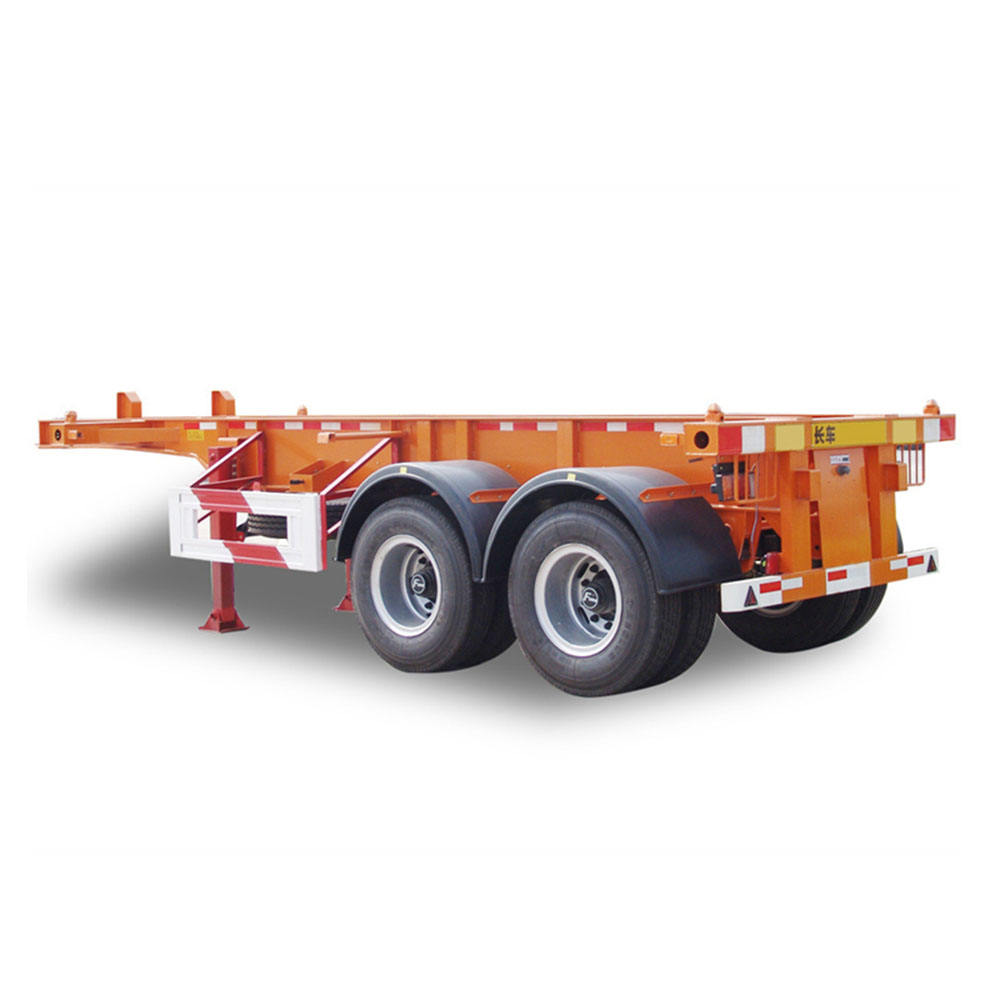

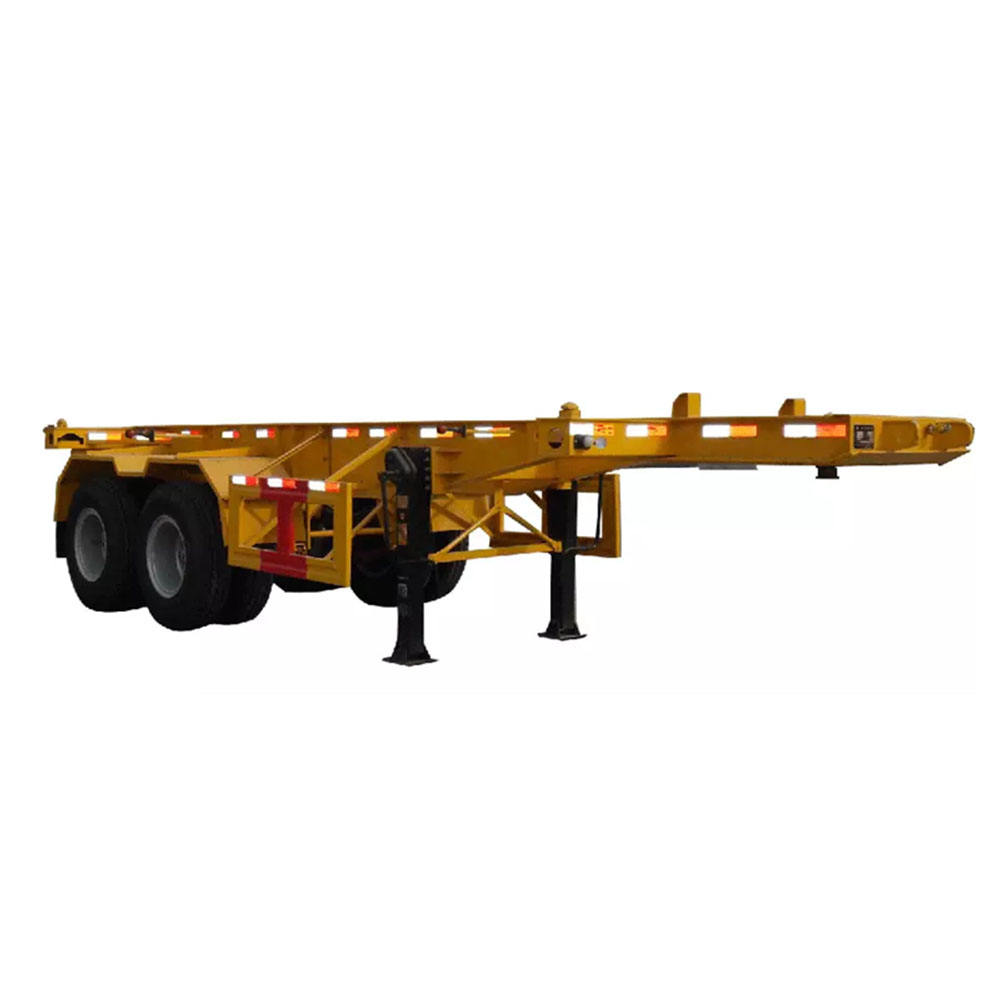

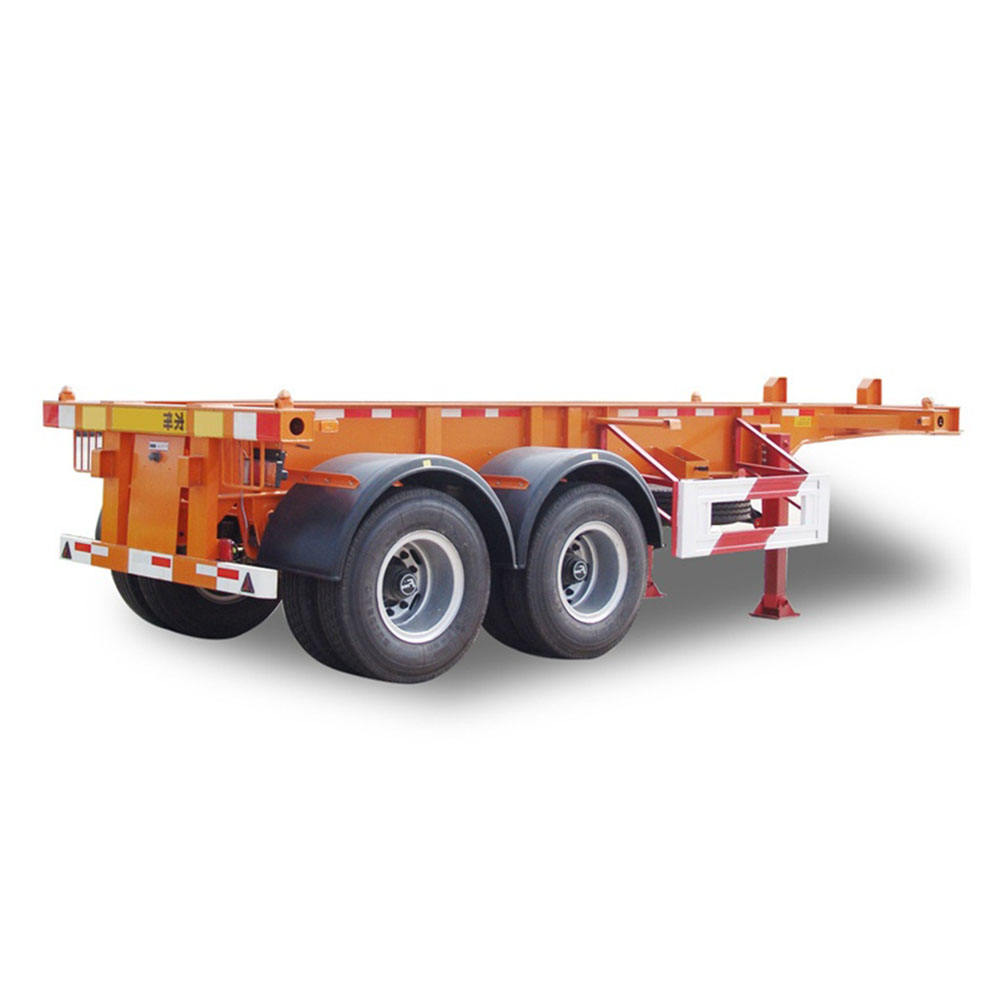

2-axis 40ft and 45ft Skeleton Semi-trailer
Introduction
+86 18615618035
+86 18615618035
info@lvntruck.com
Contact Us

Product Description

3fe566c4e6a11c90a7369d658f0e80dc

20FT Skeleton Semi Trailer40FT Skeleton Semi Trailer45FT Skeleton Semi Trailer
Brand: Vehicle MasterBrand: Vehicle MasterBrand: Vehicle Master
2 Axles/3 Axles3 Axles/ 4 Axles3 Axles/ 4 Axles
20ft Container Loading1*40ft/2*20ft Container Loading1*45ft/1*40ft/2*20ft Container Loading
Loading Capacity: 20-50 TonsLoading Capacity: 30-80 TonsLoading Capacity: 30-80 Tons
Type: Gooseneck or TandemType: Gooseneck or TandemType: Gooseneck or Tandem
Main Bean
Material: Q345/T700Material: Q345/T700Material: T700
Upper Plate Thickness: 12mmUpper Plate Thickness: 14mmUpper Plate Thickness: 10mm
Middle Plate Thickness: 6mmMiddle Plate Thickness: 6mmMiddle Plate Thickness: 5mm
Lower Plate Thickness: 12mmLower Plate Thickness: 16mmLower Plate Thickness: 10mm
Height: 500mmHeight: 500mmHeight: 420mm
Dimension
L*W*H: 7000mm*2480mm*1560mmL*W*H: 12400mm*2480mm*1580mmL*W*H: 13950mm*2500mm*1600mm
Axle
2/3 Axles *13 TonVEHCILE MASTER/FUWA/BPW3/4 Axles *13 TonVEHCILE MASTER/FUWA/BPW3/4 Axles *13/16 TonVEHCILE MASTER/FUWA/BPW
Tire
12R22.5 (8/12 Pieces)Linglong/Triangle/DoubleCoin/Bridgestone12R22.5 (12/16 Pieces)Linglong/Triangle/DoubleCoin/Bridgestone12R22.5 (12/16 Pieces)Linglong/Triangle/DoubleCoin/Bridgestone
Rim
9.00*22.5 (8/12 Pieces)Steel/Aluminum9.0*22.5 (12/16 Pieces)Steel/Aluminum9.00*22.5 (12/16 Pieces)Steel/Aluminum
Leaf Spring
90mm*13mm*10 Pieces90mm*16mm*10 Pieces90mm*13mm*10 Pieces90mm*16mm*10 Pieces90mm*13mm*10 Pieces90mm*16mm*10 Pieces
King Pin
#50 (2")/#90 (3.5")JOST/Other Brand#50 (2")/#90 (3.5")JOST/Other Brand#50 (2")/#90 (3.5")JOST/Other Brand
Landing Gear
28 Tons Two SpeedJOST/Other Brand28 Tons Two SpeedJOST/Other Brand28 Tons Two SpeedJOST/Other Brand
Twist Lock
4 Sets12 Sets12 Sets
Painting
Electrophoresis PaintingElectrophoresis PaintingElectrophoresis Painting
