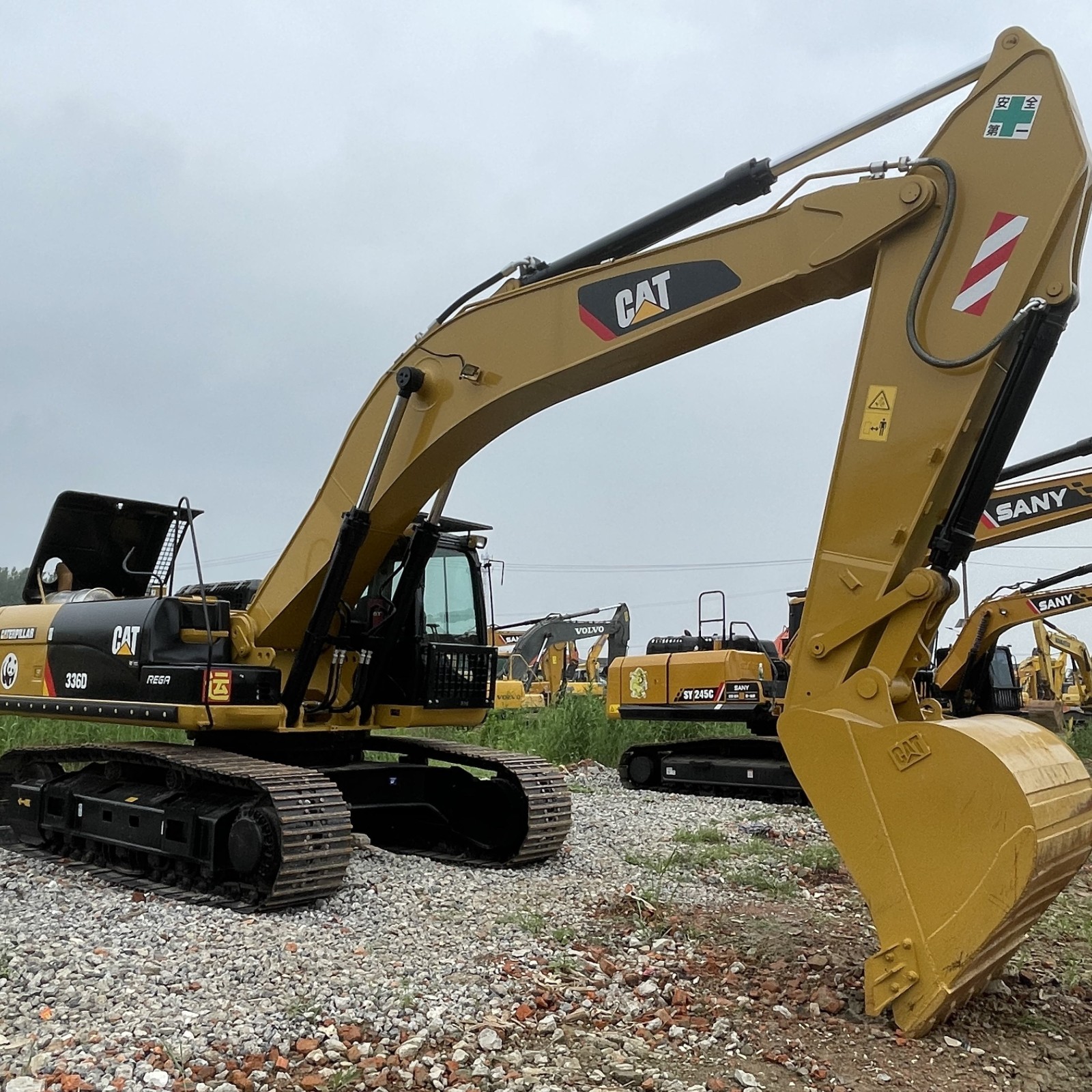

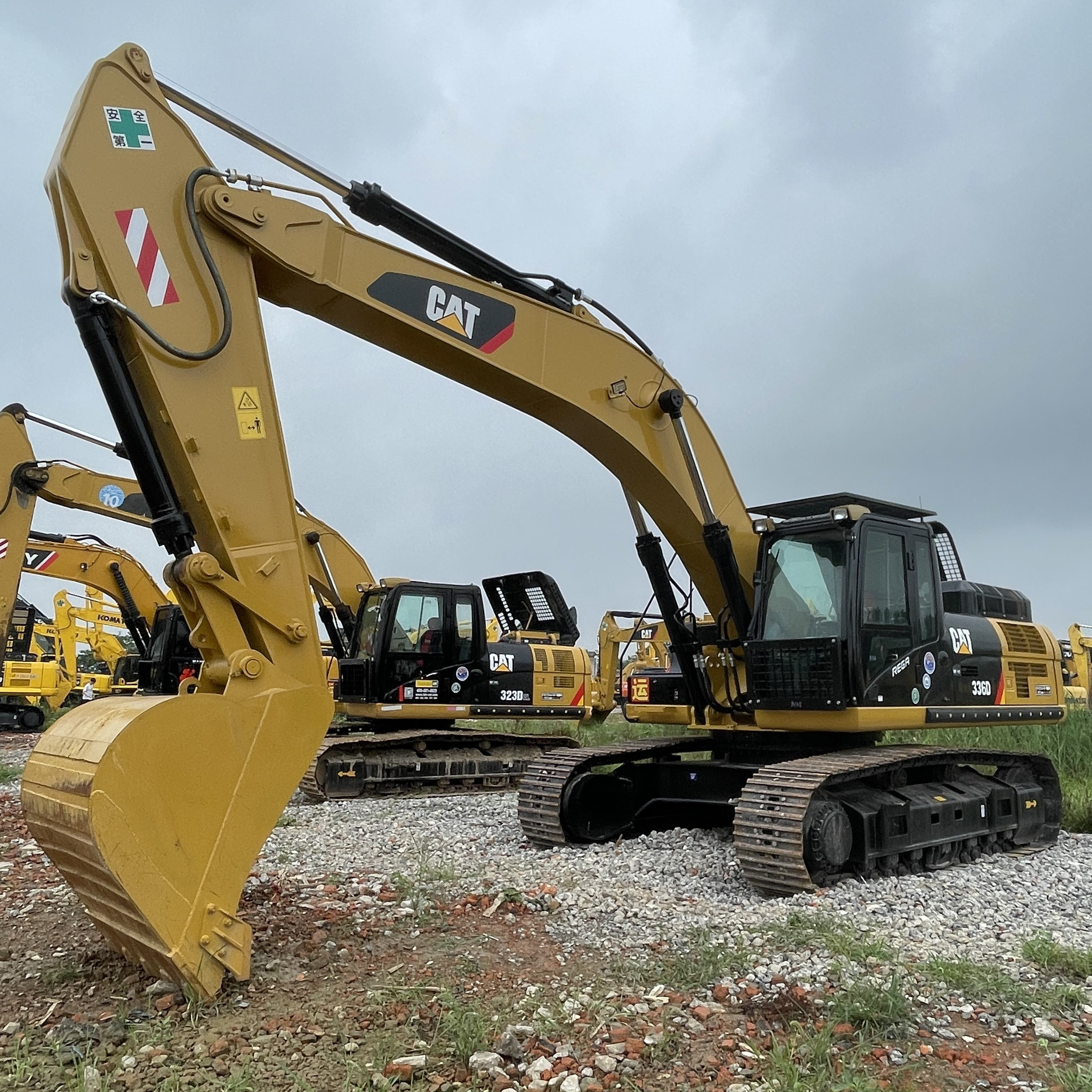

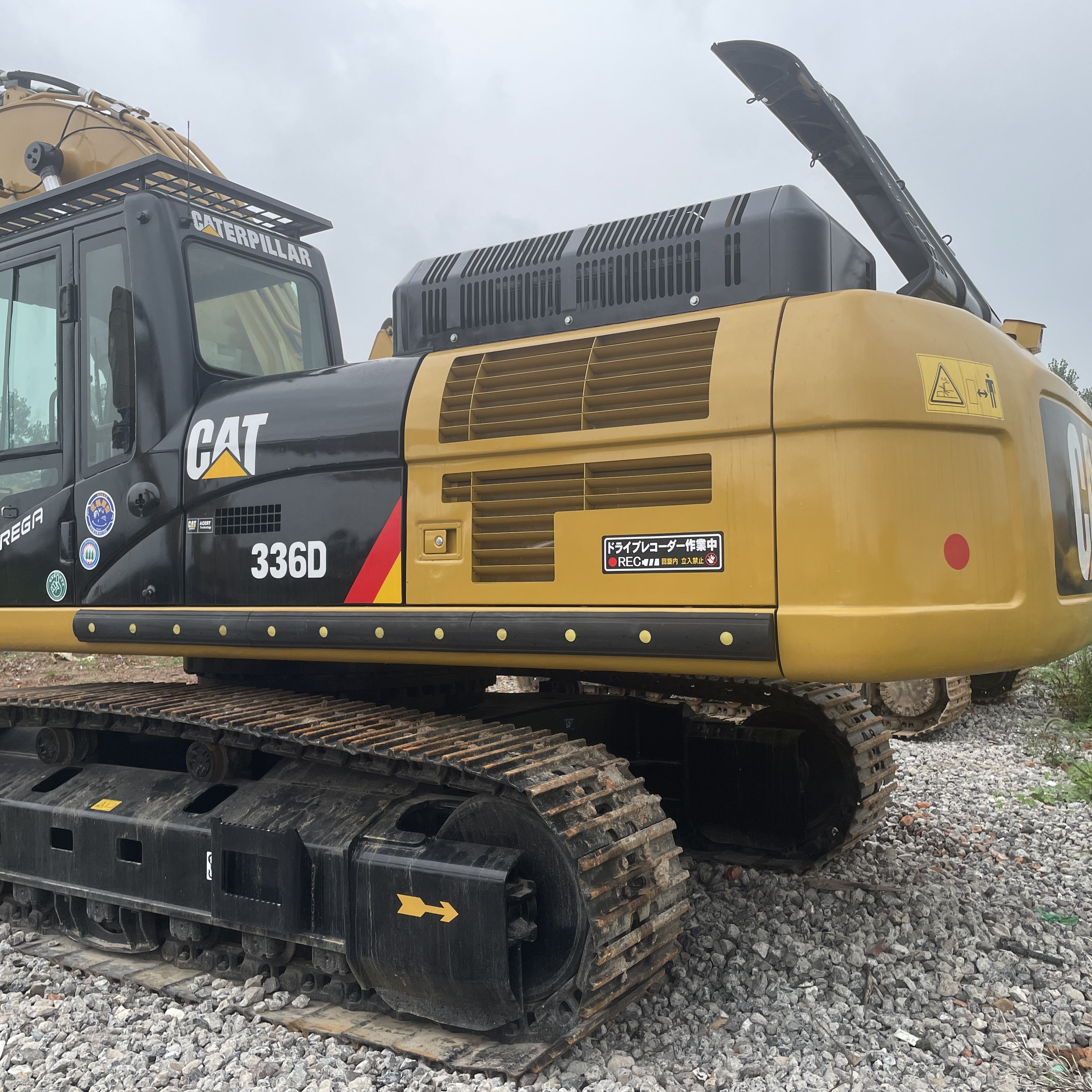

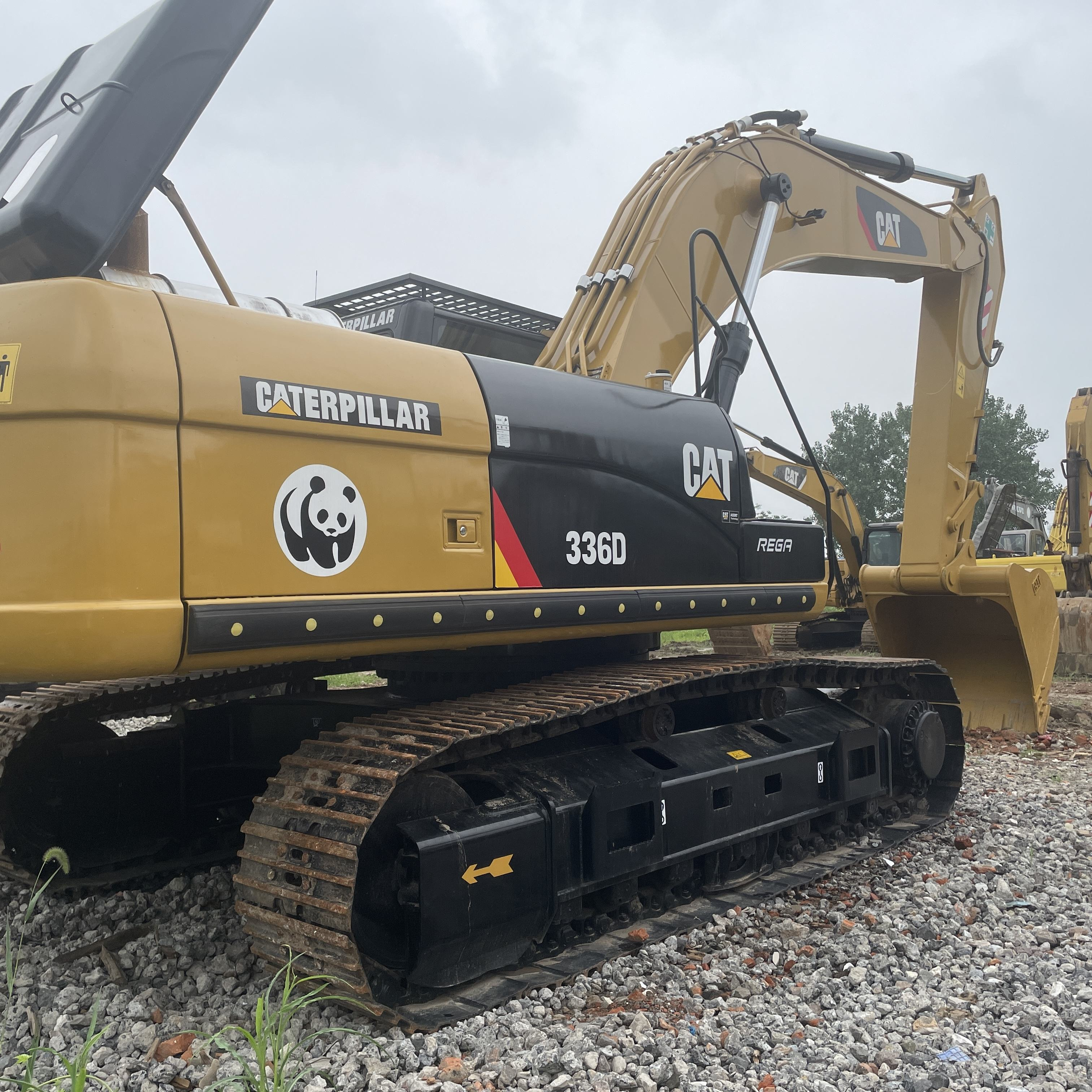

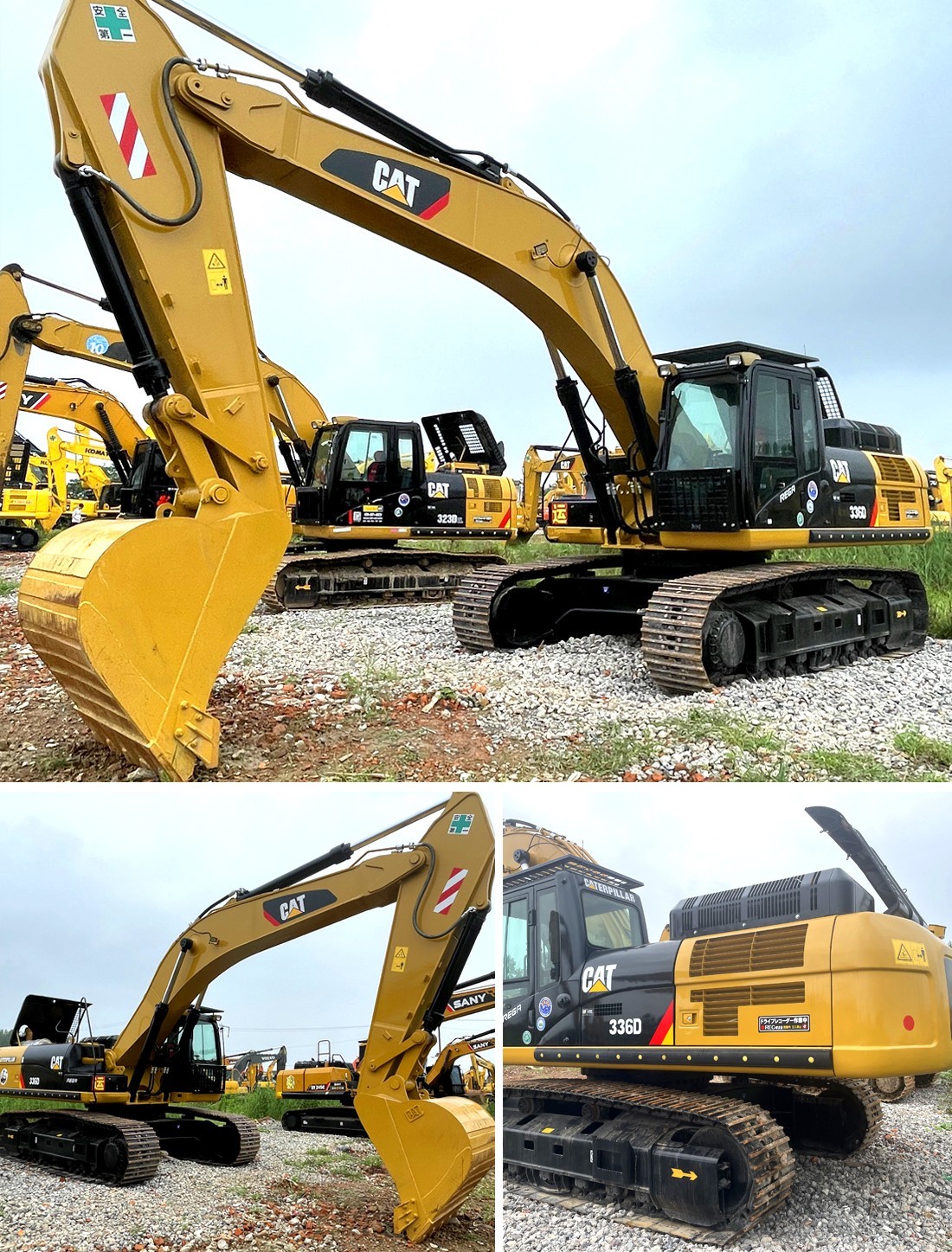

Cat 336 Excavator

Overview: The Cat® 336 is a 36-ton class large hydraulic excavator designed for demanding production applications, offering high productivity with low owning and operating costs

Engine

Powered by the Cat C7.1 TTA engine delivering 300 hp (223.5 kW) net power. It meets China Stage IV non-road emission standards and is compatible with biodiesel up to B20. The engine offers 52°C (125°F) high-ambient capability and standard cold-start down to -18°C (0°F) .

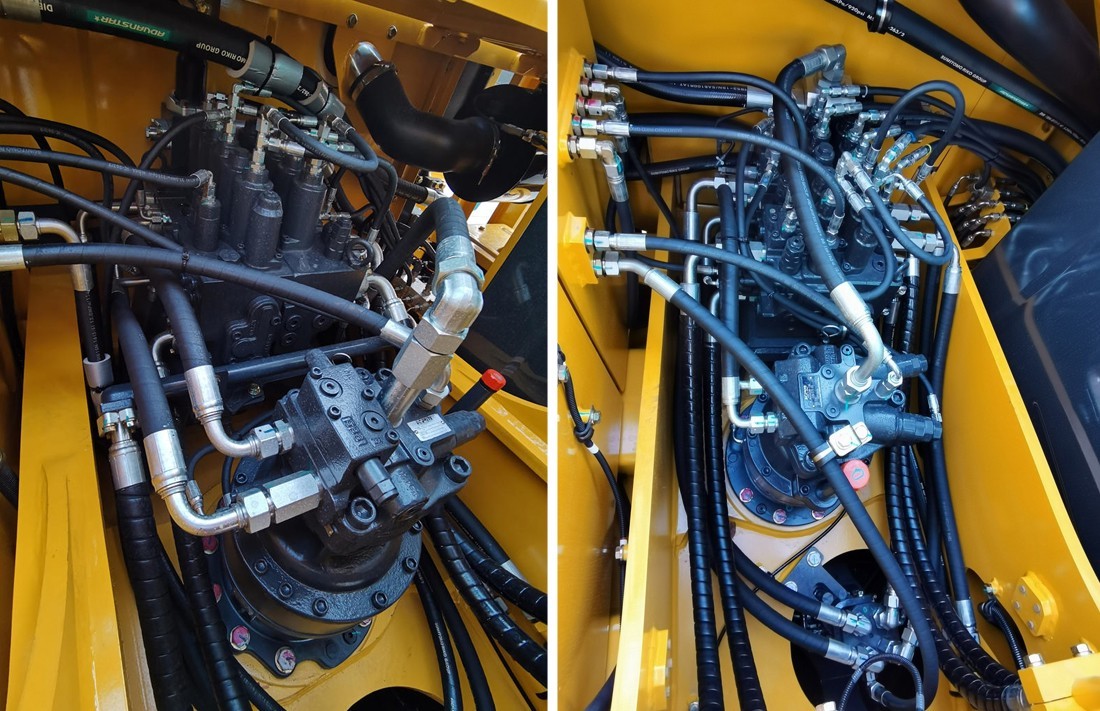

Hydraulic System

The advanced hydraulic system delivers a maximum implement flow of 560 L/min through dual pumps. Maximum equipment pressure is 35,000 kPa (38,000 kPa in Lift Mode), travel pressure is 35,000 kPa, and swing pressure is 29,400 kPa. Smart mode automatically matches engine and hydraulic power to digging conditions for optimal efficiency .

Durable Structure

Built for long-term reliability with reinforced booms, sticks, and frames using baffle plates in high-stress areas. The undercarriage features grease-sealed track pins and bushings to reduce noise and prevent debris entry, plus heavy-duty track links, recoil springs, and final drives. The sloped track frame prevents mud accumulation, and a center track guiding guard maintains alignment on slopes
