Used Haohan 6x4 Dump Truck

Introduction

+86 18615618035

+86 18615618035

info@lvntruck.com

Product Description

Haohan 6×4 Dump Truck

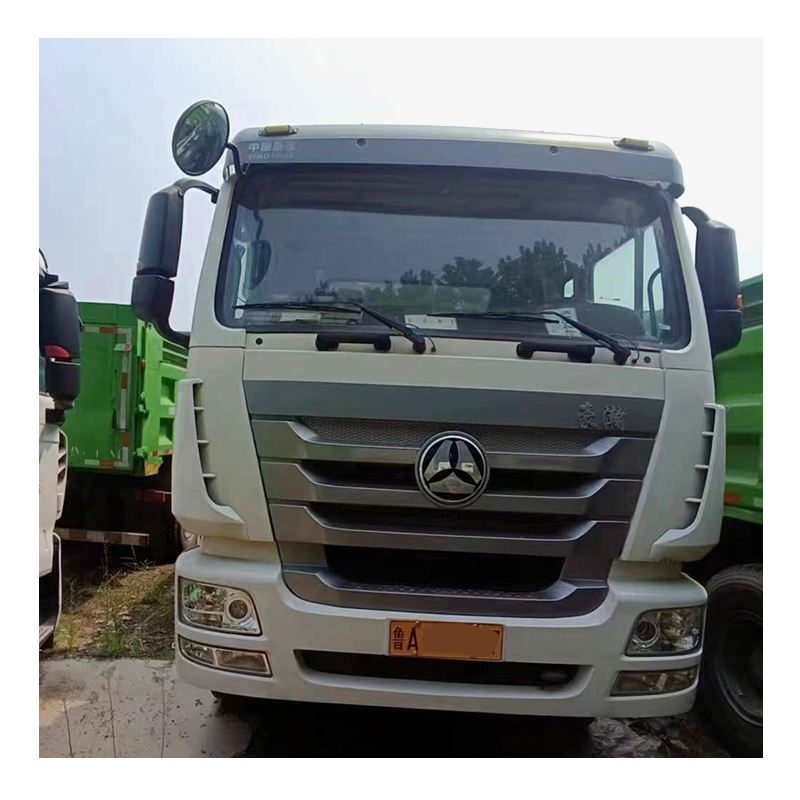

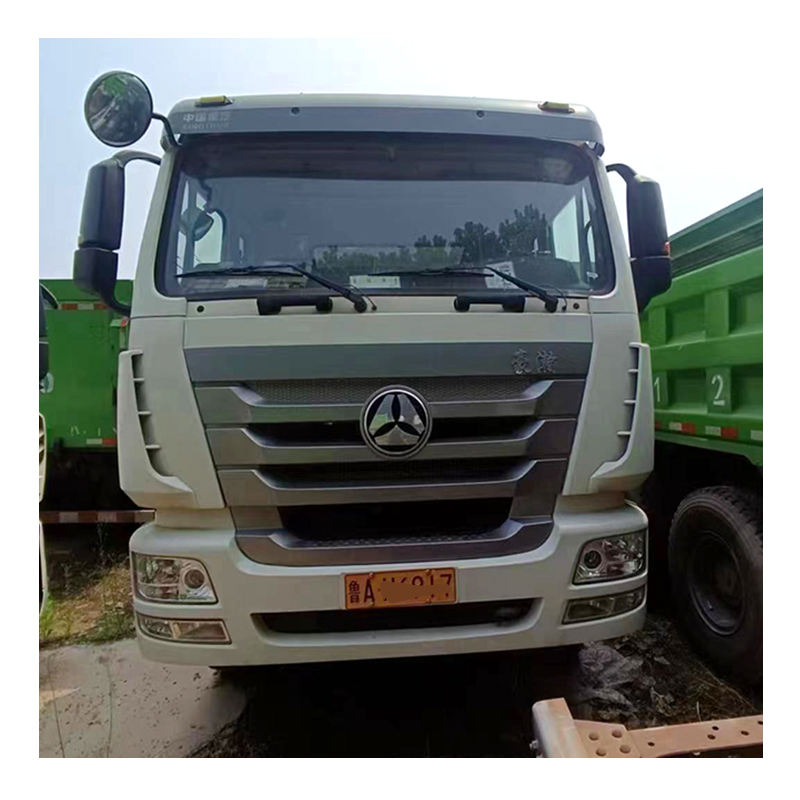

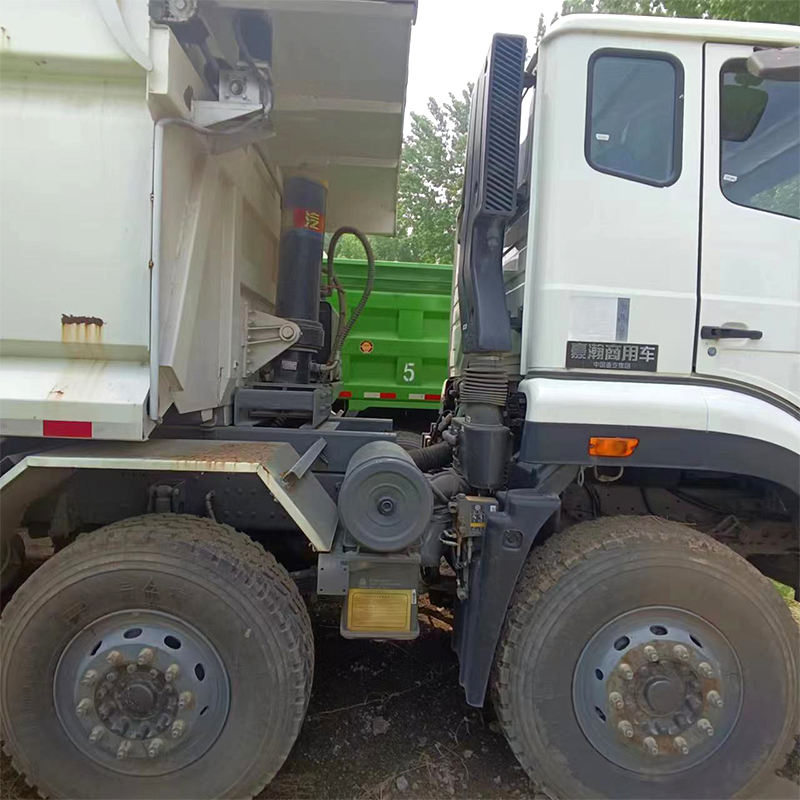

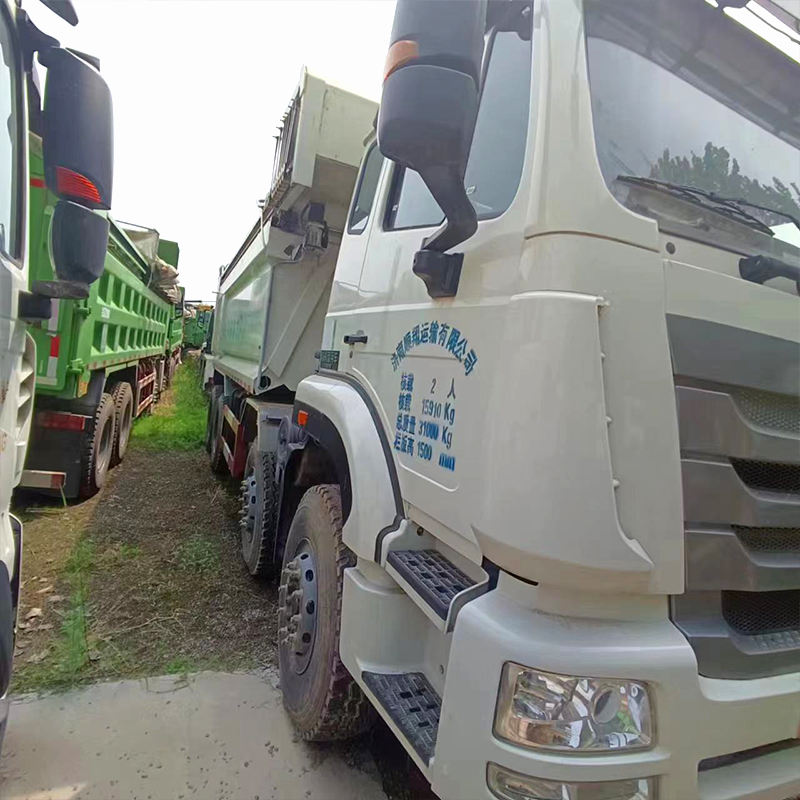

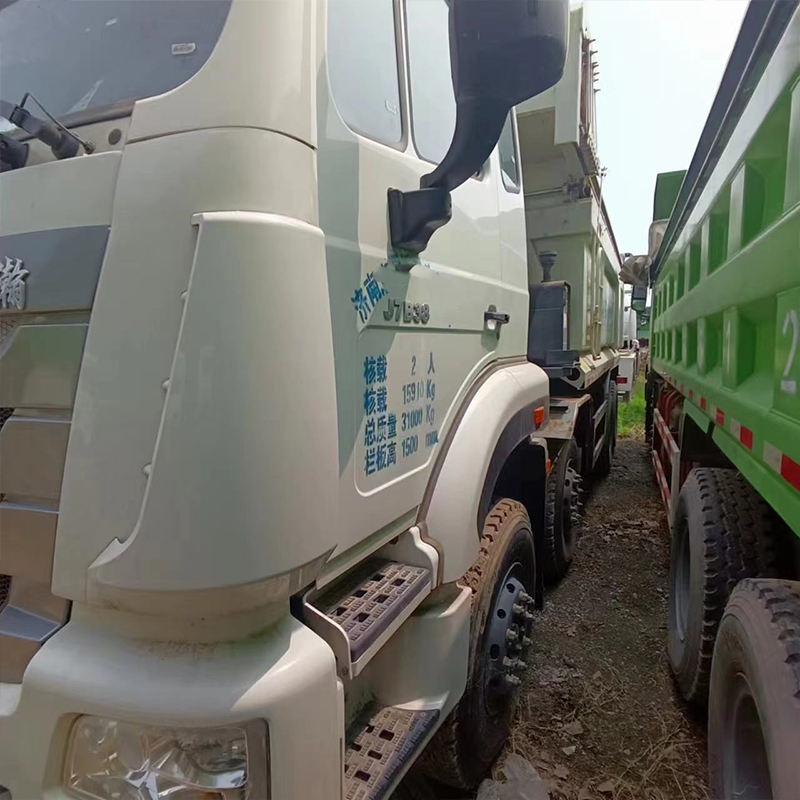

Name: Used Haohan 6x4 Dump Truck
SKU: 0

The Sinotruk Haohan 6×4 dump truck is a heavy-duty tipper engineered for mining, construction, and short-distance earthwork transport. It features a reliable structure, high carrying capacity, and strong power output, making it well-suited for harsh working environments such as construction sites and mining areas. With a 25-ton GVW and 30-40 ton load capacity, it is a cost-effective choice for export markets in Africa, Southeast Asia, and the Middle East.

Vehicle Model	Haohan 6x4 Dump Truck
Model No.	ZZ3257V384JB1R / ZZ3255N3846D1 / ZZ3255N3846B1
Drive Type	6×4
Cab	H77L / Haohan-P, single bunk, with A/C
Engine Options	WP10.380E22 (380HP) / WD615.47 (371HP) / D10.38-40 (380HP)
Emission Standard	Euro II / Euro III / Euro IV (export configurations)
Displacement	9.726 L
Transmission	HW13710 / HW19710 (10 forward, 2 reverse)
Front Axle	HF9 / VGD95 (9,000–9,500 kg)
Rear Axle	HC16 / AC16 (2 × 16,000 kg), ratio 4.77–5.833
Cargo Body	5,600–5,800 × 2,300 × 1,160–1,500 mm
Floor / Side Thickness	8 mm / 6 mm
GVW	25,000 kg
Rated Load	12.77–12.795 tons
Fuel Tank	300L / 400L
Tires	12.00R20 / 11.00R20 (10 pcs)
Max Speed	75 km/h
